Use Case - Smart window implemented with webOS OSE
February 10, 2021
Author: Jaeduck Oh
Introduction
Last year, LG Electronics opened the webOS section at the Embedded SW Contest to see how the webOS platform could be used for connected car services and received project proposals from contest participants.
The Embedded SW Contest is an event that has been held every year since 2003 to develop the embedded SW industry in Korea, acquire creative and innovative embedded SW ideas, and train competent professionals.
In the webOS section of the 18th Embedded SW Contest, five of the 10 finalists advanced to the finals, and three teams won the Best, Excellence, and Encouragement Awards. Among them, the HY-MEC team who developed the “webOS-based infotainment solution for vehicles” won the Best Award.
See the full video:
- “Sunshine (Free Download)” by LiQWYD is licensed under a Creative Commons License.
The HY-MEC team developed a solution that uses AR technology to provide information about the surroundings of the vehicle to passengers through displays on the side windows.

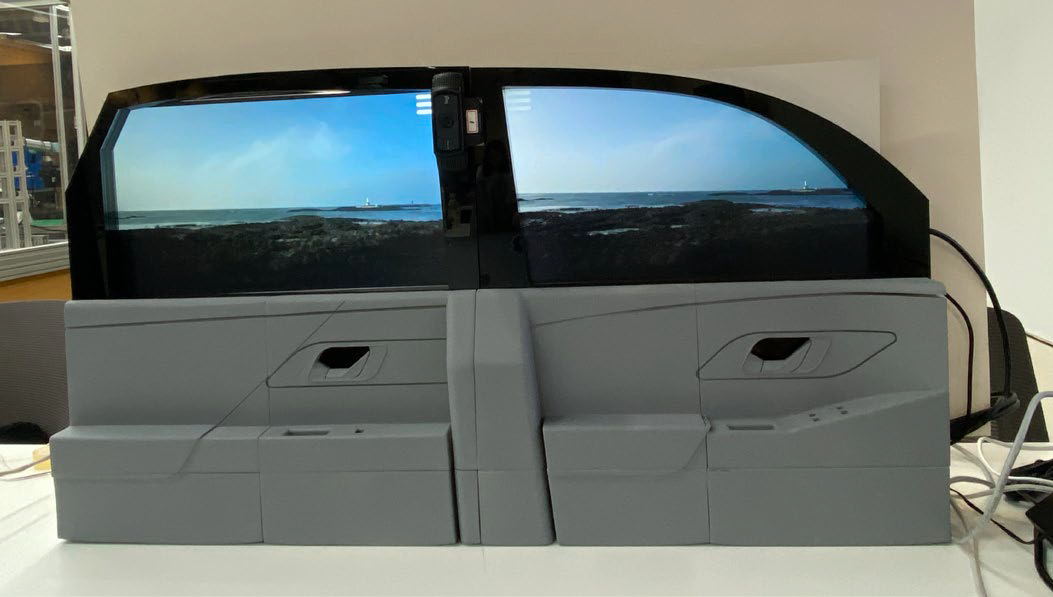

the side of a self-made vehicle model

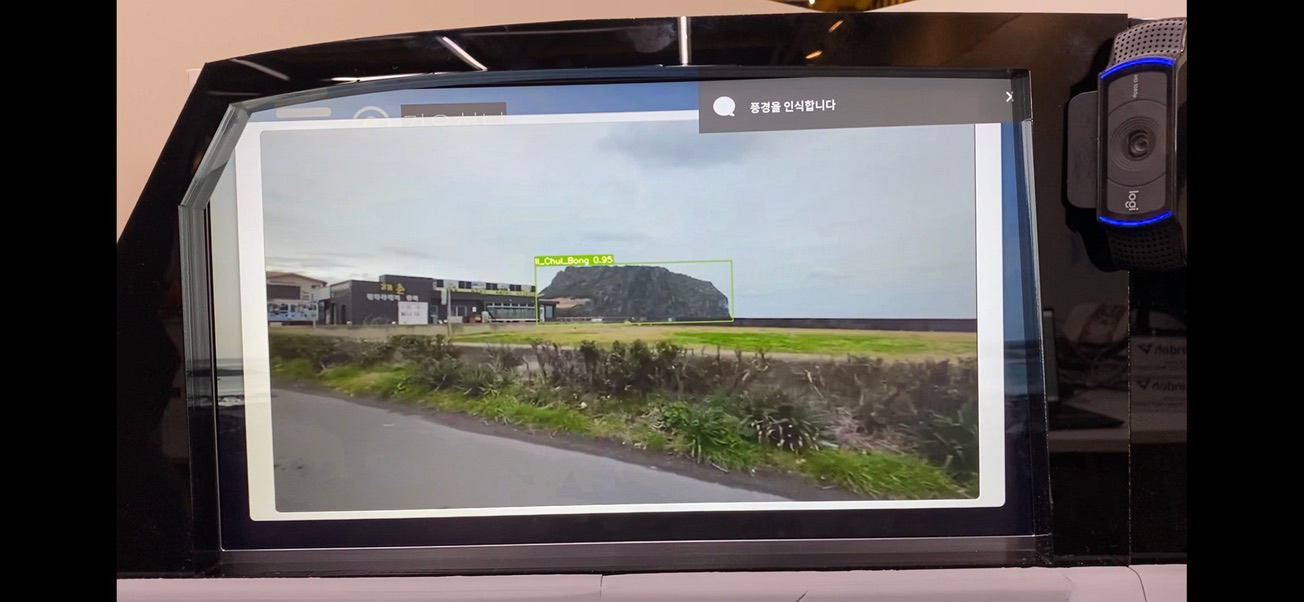

screen that provides passengers with information about their surroundings
Features of The Connected Window
The key features of the “webOS-based vehicle infotainment solution” include:
- Recognizing passengers
- Checking the passenger’s sleep status
- Checking trunk status
- Setting destination
- Checking traffic conditions
- Obtaining and interacting with external information
- Recommending travel theme
Hardware and Communication
The HY-MEC team used Nvidia’s Jetson TX2 board to recognize objects and process images by obtaining data from external cameras, and all other features employed the Raspberry Pi 4 board where a webOS OSE image is mounted. Most of the features shown on the screen are available to passengers through a web application.
WebSocket is used for communication between the Jetson board and the webOS device. Compared to traditional communication models, using WebSocket has the advantage that continuous communication between the server and clients can be maintained once their connection is established.

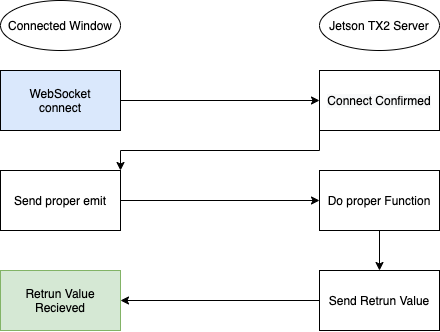

WebSocket-based data communication
Web-based Application
webOS is a web-centric and usability-focused software platform for smart devices, so developers can develop not only applications but also services using web technology in the webOS platform.
To learn more about web application development, visit: web app overview
To learn more about javascript service development, visit: js service overview
Inspired by the card-view UI theme of webOS, the main screen developed by the HY-MEC team helps you access each function intuitively. Web technology also makes it easy to provide an optimized UI for logged in users to the connected window.

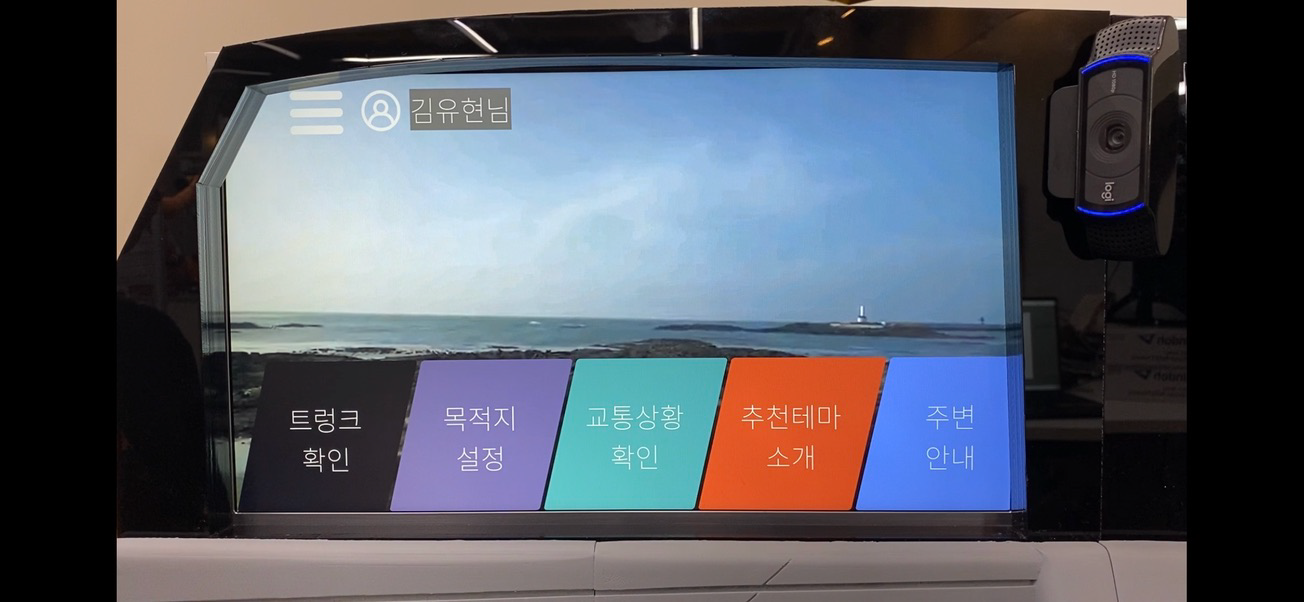

main screen of the connected window
If the connected window is connected to the Internet, it can easily get external information and present them to passengers. When you develop a web application in the webOS platform, you can easily import an external service page into your web application.

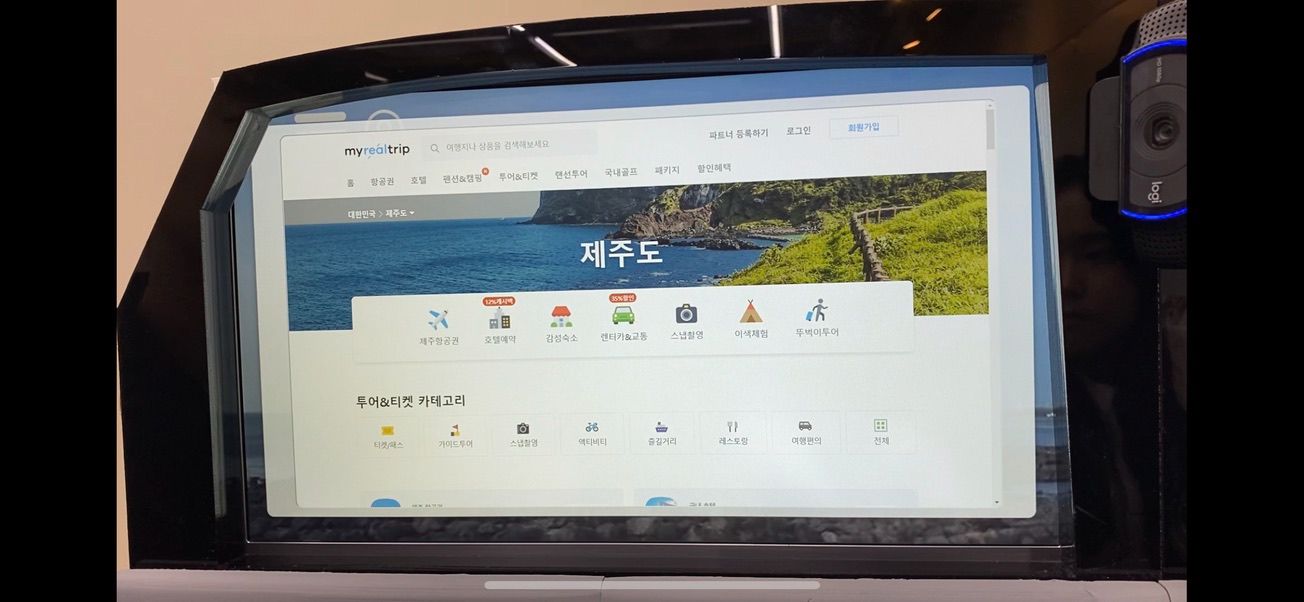

a feature that find travel themes
Using Luna Service API
The webOS platform provides a notification service. Developers can simply send a message to display to the notification service via Luna Bus. The message is displayed at the upper right corner as shown below.
- To learn more about the notification service, visit: notification serivce

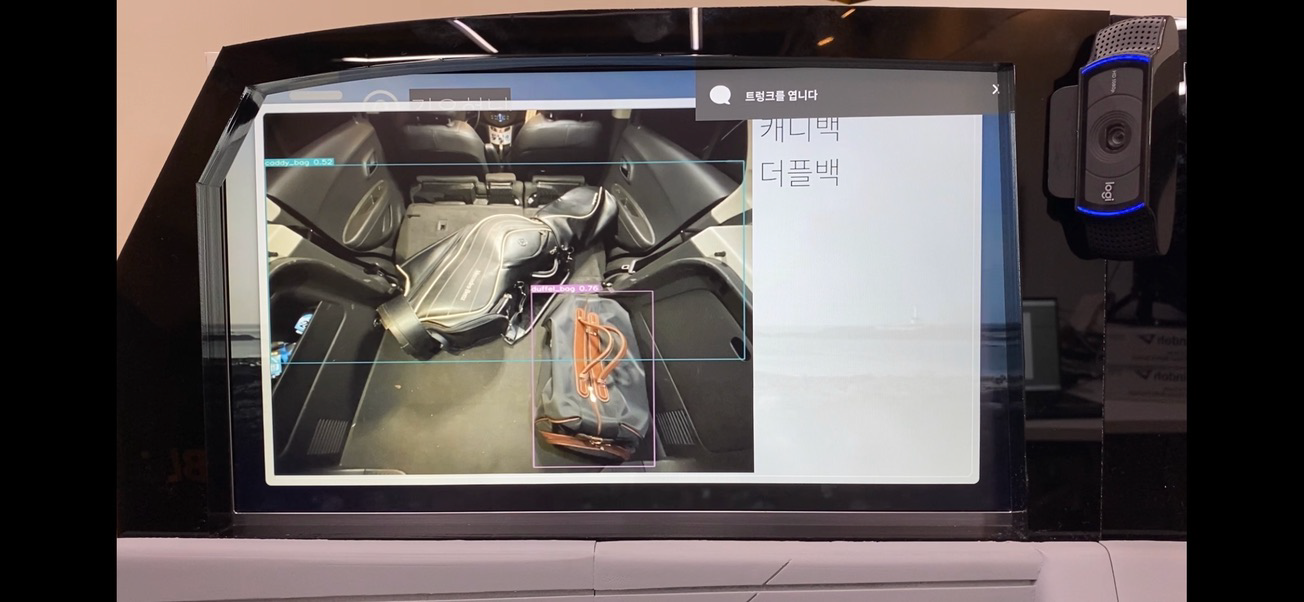

messages for passengers developed using the notification service
AR Features for Interacting
The HY-MEC team chose AR technology to provide Infotainment most effectively to passengers. They used webGL and three.js library to bring an AR character created by using the blender to the web application. The character was developed to help passengers with Text-to-Speech (TTS) assistance which reads aloud description text of passenger selected items.

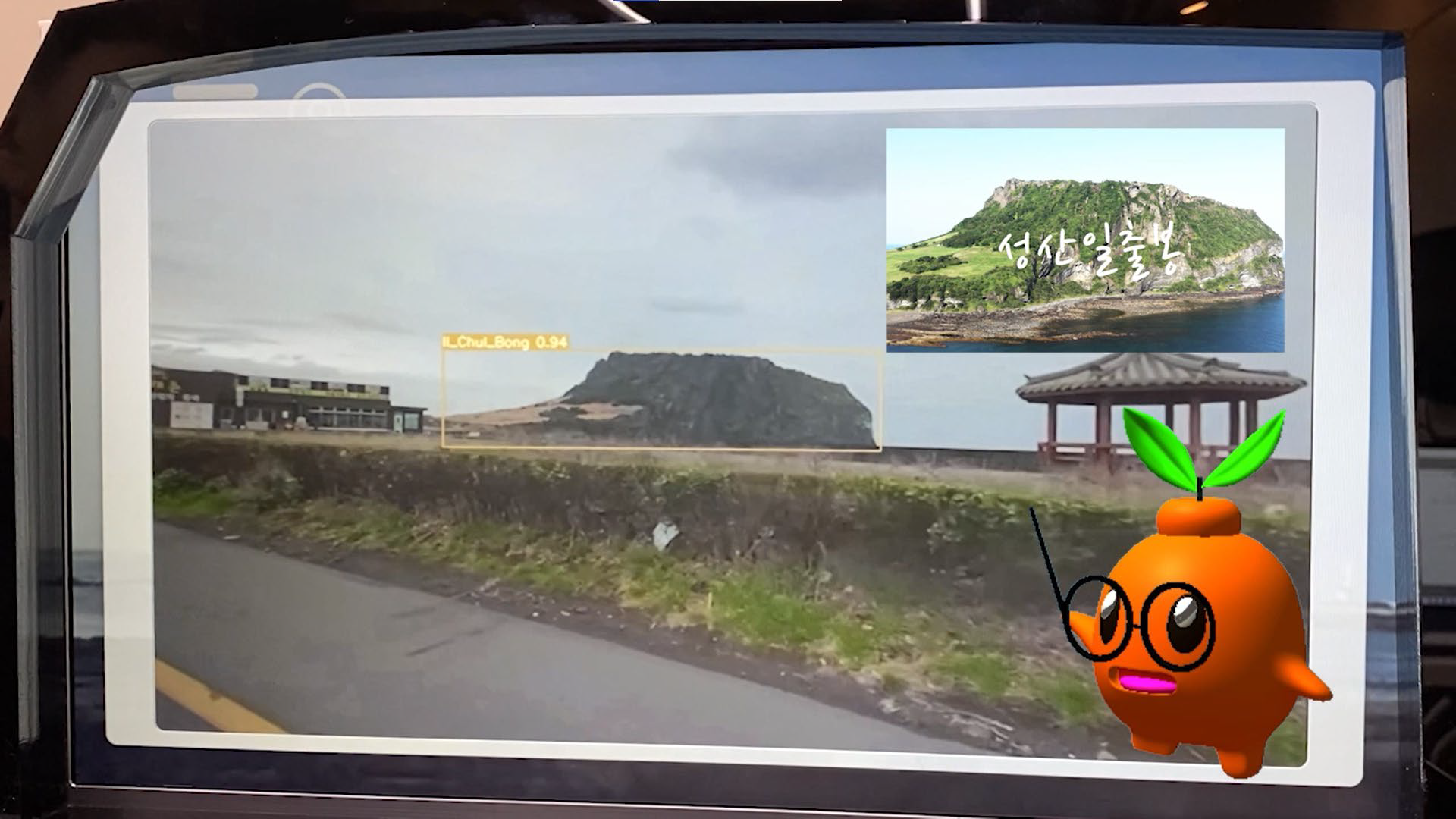

interaction using the AR technology
Conclusion
The HY-MEC team sent their impression on using the webOS platform for developing the connected window to us as below.
webOS is an embedded operating system with a lot of potentials. Our team used webOS for the purpose of developing infotainment solutions for vehicles for this contest. The advantages of the webOS platform that we experienced during development were that it did not have to be tied to the development language, that it could use various web-based services, and that it could use the system functions via LS API. However, the regrettable part was that webOS provides an awful lot of functions and its potential cannot be manifested effectively if you make only partial use of them. We designed and developed a service called Connected Window and verified the possibility that webOS can be applied to many areas.
You can realize your bright ideas with webOS OSE, just like the HY-MEC team who demonstrated Connection Window.
If you have developed anything with webOS OSE, please share it. webOS OSE is always OPEN.
